Switch-Pros RCR Ground Block: What It Is and Why You Need One
If you're building out a Switch-Pros RCR system, the ground block is one of the most important pieces of the puzzle. It gives every circuit a clean, centralized path back to battery negative — no daisy-chaining, no shared grounds, no electrical gremlins down the trail.
Why a Dedicated Ground Block?
Running individual grounds back to the battery for every accessory is messy and creates real problems at scale. Shared or undersized grounds cause voltage drop, flickering lights, and intermittent failures — especially under load. A dedicated ground block solves this by consolidating all your circuit grounds into a single, properly rated termination point that runs one clean cable back to the battery negative.
Waterproofing Your Electrical System
Off-road environments are brutal on electrical connections. Water, mud, and vibration will find every weak point in your wiring. A properly built ground block harness uses sealed Superseal-style connectors and adhesive-lined heat shrink on every splice — keeping moisture out and your system running no matter what the trail throws at it. Our ground block is designed to serve as the foundation for a fully sealed, waterproof ground system. When you build it right, you're not just grounding your accessories — you're protecting your entire electrical system.
Wire Size Matters
Not all grounds are equal. The wire gauge you use for each circuit depends on the current load. The RCR has 17 channels across three tiers: C1–C4 run at 35A and require 10 AWG mains, C5 runs at 30A and also uses a 10 AWG main, and C6–C17 run at 15A using 16 AWG pigtails — or 12 AWG mains when runs exceed 8 feet. All channels use 16 AWG pigtails at the connector. Getting this right is critical — undersized wire is a fire risk, oversized wire is wasted money.
How to Wire It
We've written a detailed connector and splice guide covering everything from tools and materials to the full pinout, splice procedure, and terminal insertion sequence. It includes a downloadable PDF pinout.
Read the full Ground Block Installation and Pinout Guide for the RCR →
Get the Ground Block

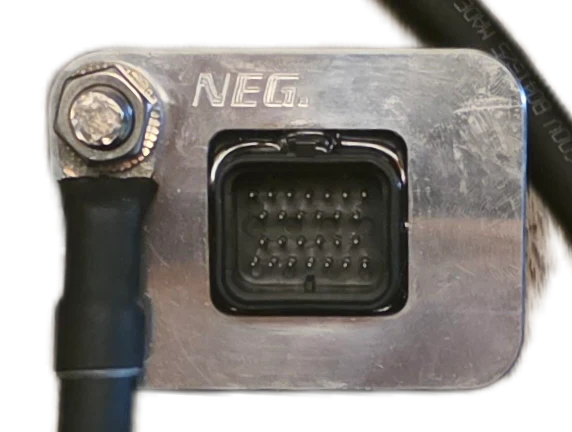

Our Switch-Pros RCR Ground Block is CNC-machined from billet aluminum and made in the USA with US materials and tools. Configure it with your choice of ground cable and wiring harness options.
Shop the Switch-Pros RCR Ground Block →
- How many channels does the RCR ground block support?
- 17 channels across three tiers: C1–C4 at 35A, C5 at 30A, and C6–C17 at 15A. All channels use 16 AWG pigtails at the connector.
- What wire gauge do I use for runs over 8 feet on C6–C17?
- For runs exceeding 8 feet, splice from the 16 AWG pigtail to a 12 AWG main at approximately 6 inches from the connector. This reduces resistance and heat in the connector path.
- Is the RCR ground block interchangeable with the 9100 ground block?
- No. The 9100 and RCR have different channel counts, current ratings, and connector configurations. The ground blocks are purpose-built for each system and are not interchangeable.
- Does the RCR ground block work on both the Can-Am X3 and Maverick R?
- Yes. The ground block connects to your Switch-Pros system and battery — it is system-specific, not vehicle-specific.
