Why Your Can-Am X3 Has Electrical Gremlins (And How to Fix Them for Good)

Your lights flicker. A switch stops responding. Something works fine at home but fails on the trail. You check every connection and can't find anything wrong — until it fixes itself.

Welcome to electrical gremlins. And if you own a Can-Am X3 with aftermarket accessories, you've almost certainly dealt with them.

The good news: the cause is almost always the same thing. And once you understand it, the fix is permanent.

The Root Cause: Chassis Grounding

When most people wire accessories into their X3, they ground each one to the chassis — a bolt, a frame rail, whatever's convenient. It works at first. But off-road vehicles live in a uniquely hostile environment for electrical connections:

• Constant vibration — loosens connections over time, even ones that feel tight
• Mud and water — corrode bare metal contact points
• Temperature swings — cause metal to expand and contract, working connections loose
• Multiple ground points — each one is a potential failure point, and they degrade at different rates

The result is a ground path that works intermittently. Sometimes the resistance is low enough that everything functions normally. Sometimes it's high enough to cause strange behavior — flickering, false triggers, accessories that won't turn on, or accessories that won't turn off.

Because the failure is intermittent and resistance-based rather than a clean open or short, it's nearly impossible to diagnose with a basic multimeter on the trail. The connection looks fine. The voltage looks fine. But the system misbehaves anyway.

Why It Gets Worse Over Time

Corrosion is cumulative. Every trail ride adds a little more oxidation to your chassis ground points. Every vibration works connections a little looser. A build that ran perfectly for a season starts developing problems in year two — not because anything changed, but because the degradation finally crossed a threshold.

Adding more accessories makes it worse. Each new ground point is another potential failure. Builders who run lights, a winch, a Switch Pros system, audio, and a compressor often have five or more separate chassis ground points — five separate places where corrosion and vibration can cause problems.

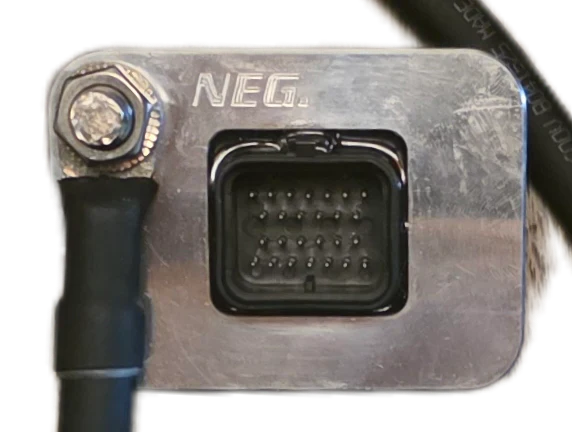

The Permanent Fix: A Centralized Ground Block

Instead of grounding each accessory to the chassis at a different point, a ground block provides a single, sealed termination point. Every accessory grounds to the block. The block runs a single, heavy negative cable directly to the battery.

This eliminates the problem at its source:

• One ground path to the battery — not five or ten scattered chassis points
• Sealed terminals — corrosion-resistant, not bare metal bolted to a frame rail
• Single point to inspect — if you ever do have an issue, there's one place to look
• Cleaner wiring — fewer wires running to the battery, professional finish

It's not a workaround. It's how professional race vehicles are wired. The reason your stock X3 doesn't have electrical gremlins is that the factory wiring uses a proper grounding architecture. When you add aftermarket accessories with chassis grounds, you're introducing the exact failure mode the factory avoided.

What About the Switch-Pros System?

If you're running a Switch Pros 9100 or RCR, a ground block is especially important. The Switch Pros system controls multiple high-current outputs — lights, winch, compressor, and audio. Each of those accessories needs a reliable ground return path. If any of those grounds are marginal, you'll see exactly the kind of intermittent behavior described above, and it'll be nearly impossible to trace back to the ground because the Switch Pros system itself will appear to be functioning correctly.

Our ground blocks are purpose-built for Switch Pros systems — matched to the 9100 and RCR connector specs, with sealed terminals and a single negative cable run to the battery.

• Switch-Pros 9100 Ground Block →
• Switch-Pros RCR Ground Block →

Other Common Causes of X3 Electrical Problems

Grounding is the most common cause, but not the only one. If you've addressed your grounds and still have issues, check these:

• Undersized wire — wire that's too small for the current draw will cause voltage drop and erratic behavior under load
• Poor connector quality — cheap butt connectors and non-weatherproof connectors fail in off-road conditions
• Overloaded circuits — running too many accessories on a single output without checking current ratings
• Damaged wiring from routing — wires routed near heat sources, sharp edges, or moving parts

The Bottom Line

If your Can-Am X3 has intermittent electrical problems, start with the grounds. It's the right answer the vast majority of the time, and fixing it properly — with a centralized ground block and a direct battery connection — eliminates the problem permanently rather than chasing it connection by connection.

Questions about your specific build? Call Denny at 530-771-7594. Every call turns into the right answer.

Related Guides

• Switch Pros 9100 vs RCR: Which One Do You Actually Need?
• Can-Am X3 Switch Pros Mount: Why the Right Mount Makes or Breaks Your Install

What causes intermittent electrical problems in the Can-Am X3?

The most common cause is chassis grounding. Vibration, corrosion, and temperature swings degrade chassis ground points over time, creating intermittent resistance that causes flickering, false triggers, and misbehaving accessories that are nearly impossible to diagnose with a basic multimeter.

Why are electrical gremlins so hard to diagnose on the trail?

Because the failure is resistance-based rather than a clean open or short. The connection looks fine and voltage looks fine, but the system misbehaves anyway. The problem often disappears when you check it and returns under load or vibration.

Does adding more accessories make electrical gremlins worse?

Yes. Each additional chassis ground point is another potential failure. Builders running lights, a winch, a Switch-Pros system, audio, and a compressor may have five or more separate chassis ground points — five separate places where corrosion and vibration can cause problems.

What is the permanent fix for X3 electrical gremlins?

A centralized ground block. Instead of grounding each accessory to the chassis at a different point, a ground block provides a single sealed termination point. Every accessory grounds to the block, and the block runs one heavy negative cable directly to the battery.

Will fixing the grounds solve all electrical problems on my X3?

Grounding is the most common cause, but not the only one. Other causes include undersized wire, poor connector quality, overloaded circuits, and wiring routed near heat sources or sharp edges. Start with grounds — it's the right answer the vast majority of the time.
